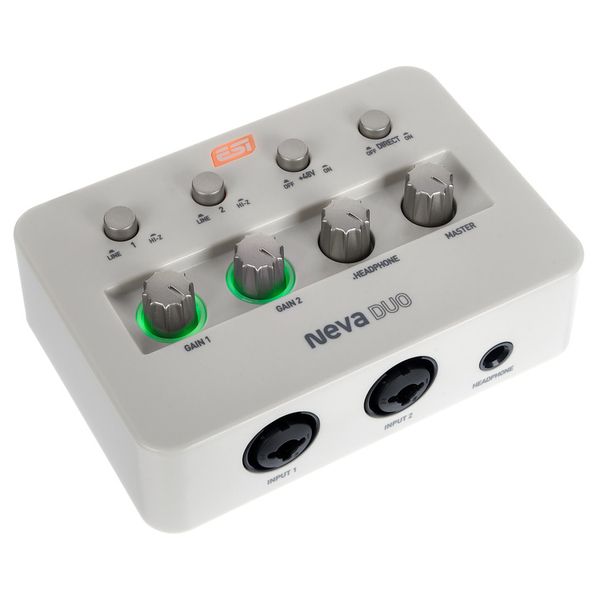

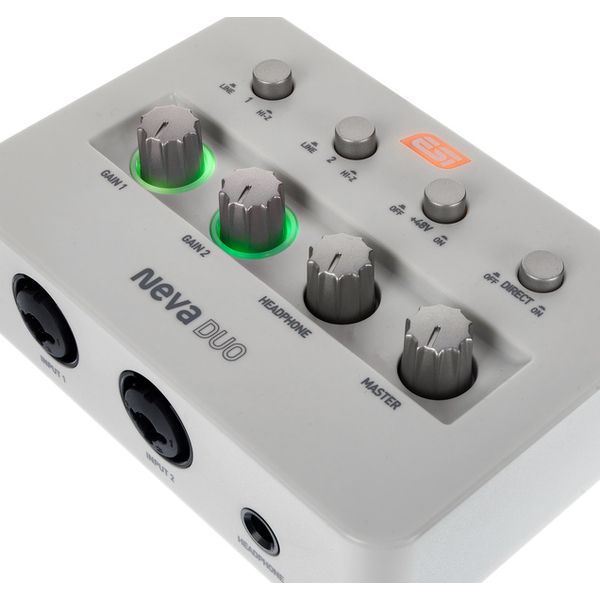

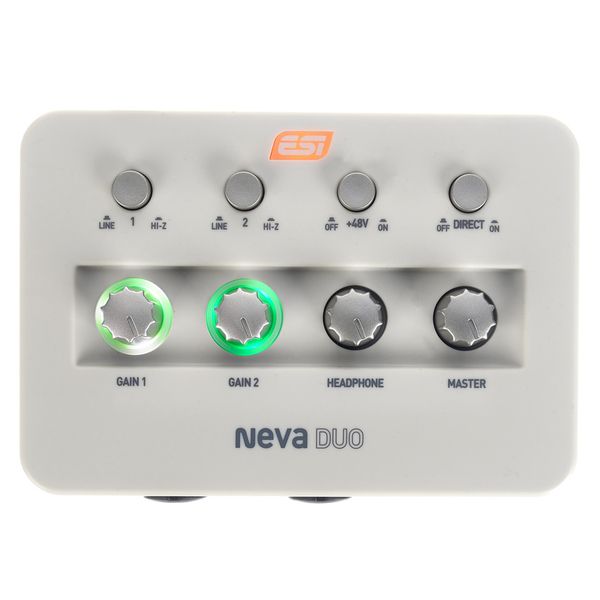

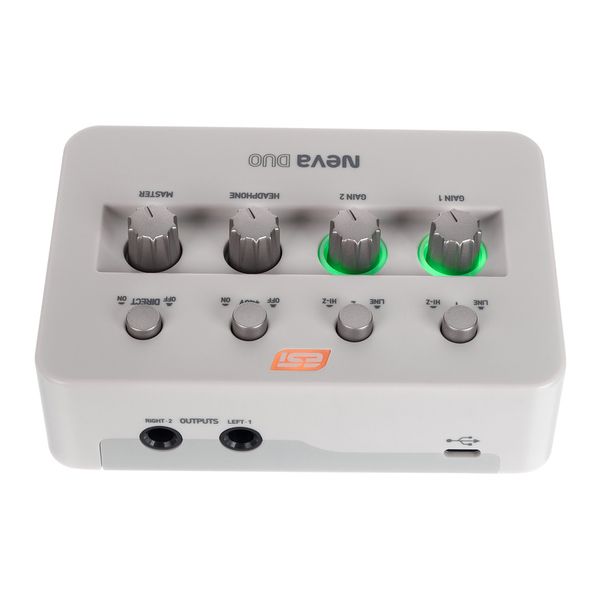

Two-channel USB 2 audio interface with USB-C connection
24 Bit / 192 KHz
+48 V phantom power

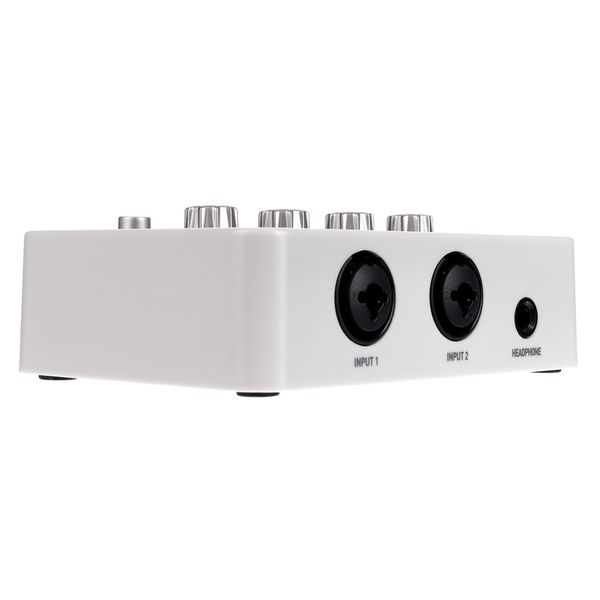

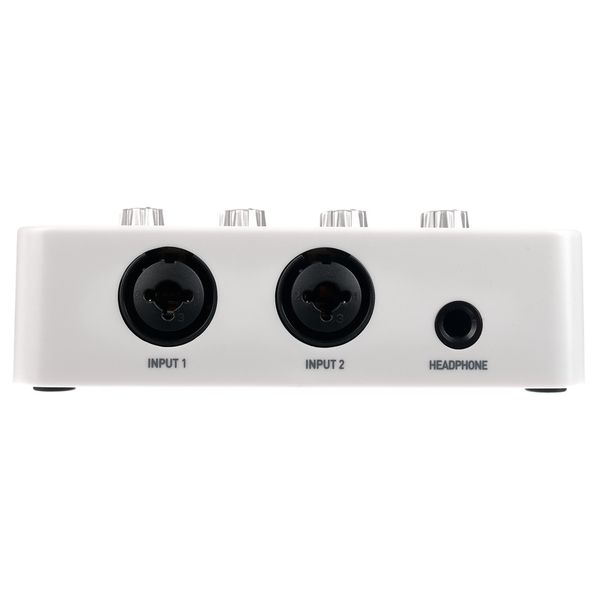

2x Microphone / instrument / line input XLR / 6.3 mm jack combo balanced
Preamp gain: 50 dB
A/D converter with 97dB(a) dynamic range
D/A converter with 107dB(a) dynamic range

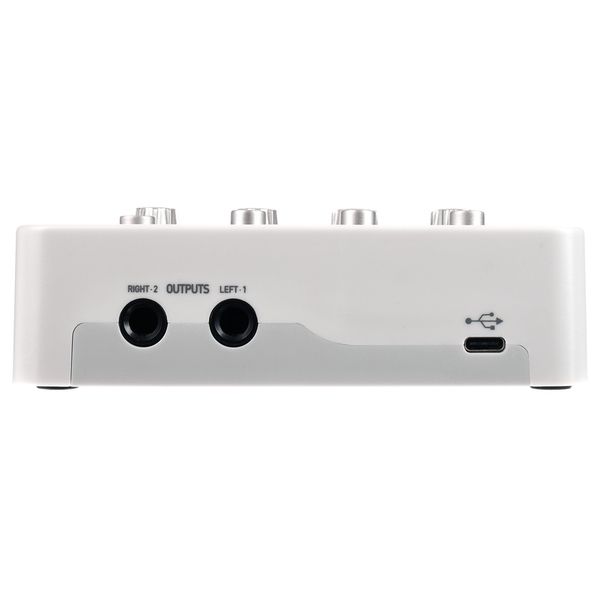

2 Line outputs: 6.3 mm jack, balanced
Stereo headphone output: 6.3 mm jack
USB Type-C port
USB-Powered
Windows 10 or later, Mac Intel/M1 or later and iOS
Class Compliant
Loopback function

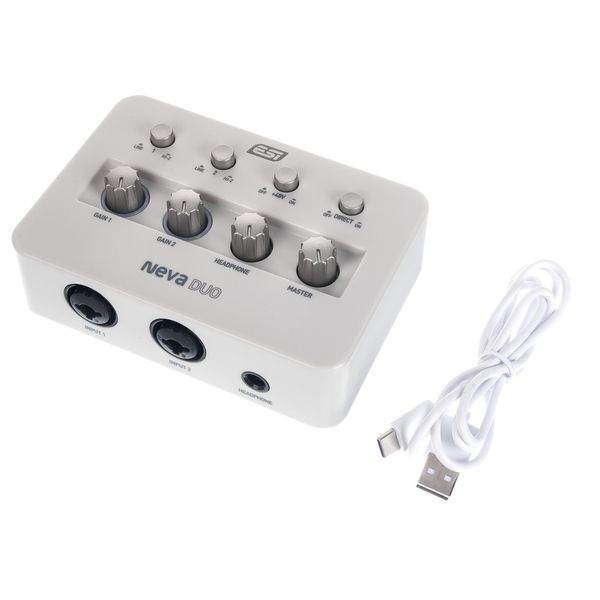

Includes USB cable (type C to A), Cubasis LE3, Wavelab LE10, Bitwig Studio 8-Track and 3 months / up to 9000 minutes subscription for JackTrip Virtual Studio
Available sinceNovember 2022
Item number554148
Sales Unit1 piece(s)
Recording / Playback Channels2x2
Number of Mic Inputs2
Number of Line Inputs2
Instrument Inputs2
Number of Line Outs2
Headphone Outs1
Phantom powerYes
Number of S/PDIF Connectors0
Number of ADAT Connectors0
Numer of AES/EBU Connectors0
Number of MADI Connectors0
Ethernet0
Other ConnectorsUSB-C
MIDI interfaceNo
Word ClockNo
Max. sample rate (kHz)192 kHz
Max. resolution in bit24 bit
USB Bus-PoweredYes
Incl. power supplyNo
USB Version3.1
Width in mm130 mm
Depth in mm90 mm
Height in mm40 mm
Connection FormatUSB port Type C
Included in deliveryCubasis LE3, Wavelab LE10, Bitwig Studio 8-Track
